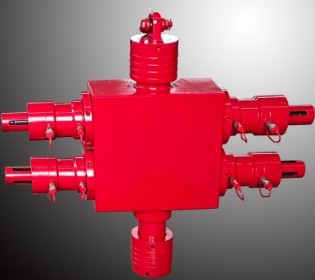

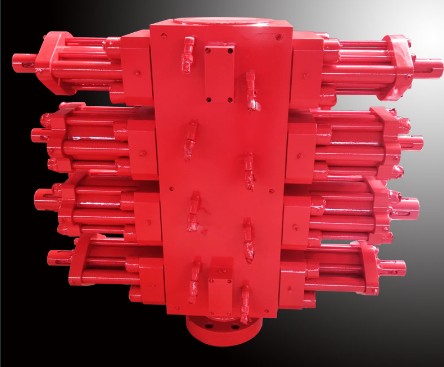

Double Ram BOP

Product Item：2

Double Ram BOP

Shear Ram BOP

Variable Ram BOP

Front Packer

Description

shaffer style;cameron style

Two kinds of locking systen could be:the manual locking system

Not only the pipe rams and blind rams but aslo the variable bore rams and shear rams are available without any structure change

Matched-manufacturing is not necessary for the bonnets and body,so the diserepancy could be eliminated by thestructure.And it is convenient for the maintenance in the future

Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of API, ISO, GOST, etc. Through efforts of Cangzhou Fengliang Petroleum Machinery Co.,Ltd staff, our products have already been exported to the USA, South America, Africa, Middle East, Russia and some other countries and regions. With super quality, reasonable price and professional service, Cangzhou Fengliang Petroleum Machinery Co.,Ltd has become assigned supplier and built strategic partnership with some coutries' national petroleum companies.

Cangzhou Fengliang Petroleum Machinery Co.,Ltd company takes "providing the most qualified products, most competitive prices and most professional service for every customer" as its mission. We are striving and aiming to be one of the most professional oilfield equipment suppliers in China. We sincerely welcome customers and friends domestic and abroad come to create a prosperous future with us.

key feature:

1) Shape Generally, the BOP body is similar to a square, in the middle there is vertical bore through which the pipes

can pass and the ram cavities in which the ram move in the horizontal direction.
2)Connection types The three connection types are studded, flange, clamped top and bottom connections. The sizes

of flanges, bolts, clamps and ring grooves all conform to API standards.

(2) Features of Ram Structure and Application

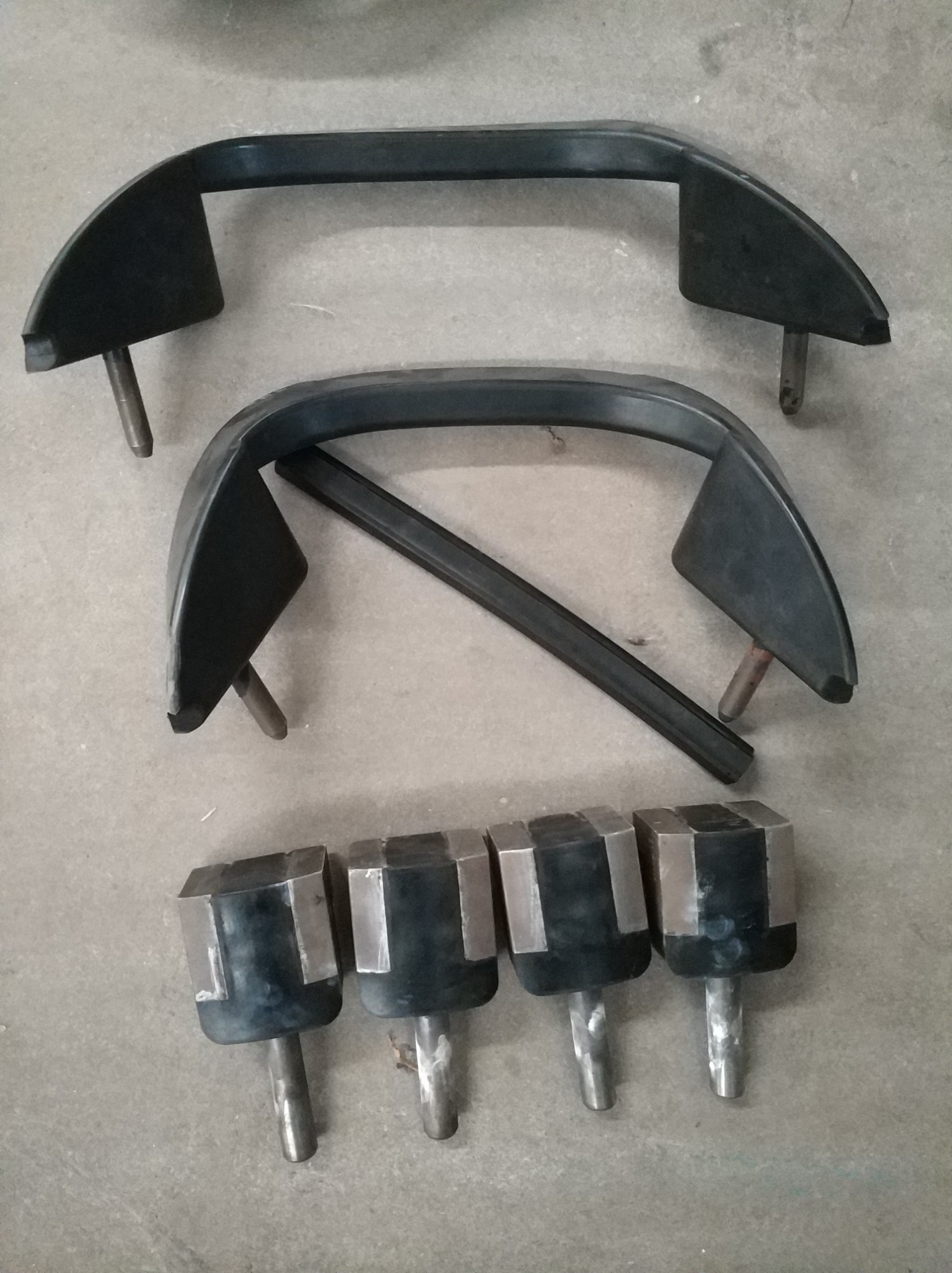

For the double-face ram, the upper-face ram and lower-face of the ram are exactly symmetrical. For various drilling

tools with different sizes, it only need to replace the semi-annular rubber sealing ring and ram compact, the other parts

can be interchanged. The single-face ram can not be turned over; the shearing ram can shear the drilling tool in the hole

to seal off the well. The ram BOP with variable bore rams can be used for the sealing off the casing and drilling tools

of various sizes within a certain range.

FAQ

1. Who are you?

Cangzhou Fengliang Petroleum Machinery Co.,Ltd. are integrated oilfield equipment solution provider. We produce Rongsheng（HRSB） brand BOP spare，Varco Top drive spare,Chinese brand TDS spare,ESP cable penetrator.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, Mud Pump unit ,Rongsheng（HRSB）and complete equipment depends upon technical configuration.

HOT TAGS :

Item	Type	Specification
1	7-1/16″-3000psi Single ram BOP/Double ram BOP	Bore: 7-1/16″ Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
2	7-1/16″-5000psi Single ram BOP/Double ram BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7 1/16″-5000psi 6B R46 SST Studded Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged
3	7-1/16″-10000psi Single ram BOP/Double ram BOP	Bore: 7-1/16" Working pressure: 10000psi Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged
4	7-1/16″-15000psi Single ram BOP/Double ram BOP	Bore: 7-1/16″ Working pressure: 15,000psi Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
5	9″-3000psi Single ram BOP/Double ram BOP	Bore: 9″ Working pressure: 3,000psi Top connection: 9″-3000psi 6B R49 SST Studded Bottom connection: 9″-3000psi 6B R49 SST Flanged
6	9″-5000psi Single ram BOP/Double ram BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9″-5000psi 6B R50 SST Studded Bottom connection: 9″-5000psi 6B R50 SST Flanged
7	9″-10000psi Single ram BOP/Double ram BOP	Bore: 9″ Working pressure: 10,000psi Top connection: 9-″10000psi 6BX BX157 SST Studded Bottom connection: 9″-10000psi 6BX BX157 SST Flanged
8.	11″-3000psi Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 3,000psi Top connection: 11″-3000psi 6B R53 SST Studded Bottom connection: 11″-3000psi 6B R53 SST Flanged
9	11″-5000psi Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-5000psi 6B R54 SST Flanged
10	11″-10000psi Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 SST Studded Bottom connection: 11″-10000psi 6BX BX158 SST Flanged
11	11″-15000psi Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 15,000psi Top connection: 11″-15000psi 6BX BX158 SST Studded Bottom connection: 11”-15000psi 6BX BX158 SST Flanged
12	13-5/8″-3000psi Single ram BOP/Double ram BOP	Bore: 13 5/8″ Working pressure: 3,000psi Top connection: 13 5/8″-3000psi 6B R57 SST Studded Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged
13	13-5/8″-5000psi Single ram BOP/Double ram BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged
14	13-5/8″-10000psi Single ram BOP/Double ram BOP	Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged
