Description

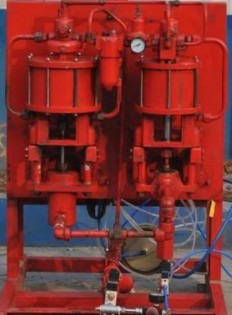

1. The unit includes the following parts：
1) One (1) effective volume 100L oil reservoir, complete with 4〞cleaning port, air filter, oil releasing port and sight glass gauge.
2) One (1) liquid/air 60:1 pneumatic pumps, 1” inlet and 1/2” outlet, max working pressure 42MPa(6090psi), pump flow rate 90mL/stoke. Flowrate is 16L/min at 21MPa(3000psi).
3) Two (2) NPT 1/2” high pressure stop valve, working pressure 42MPa (6000psi), one is used to release the system pressure and the other to retain pressure.
4) One (1) OD100 pressure gauge with range of 0～40MPa(0～5800PSI).
5) One (1) 1/2〞air source manifold, complete with stop valve, regulator, air filter and atomizer and two (2) OD60 pressure gauge to display:
a. Air source pressure with range of 0～1.6MPa (0～232PSI);
b. Air pressure for the pump group with range of 0～1.6MPa (0～232PSI);
6) One (1) chart recorder(0～35MPa), the technical parameters are as follows:
|
Model |
JL-Y-35 |
|
|
Input Signal |
4~20mA |
|
|
Display |
Accuracy |
±0.5%FS±end-term code1 |
|
Function |
Digital display of Measurement value, set value |
|
|
Recording |
Accuracy |
±1%FS |
|
Recording paper |
Linear garden figure recording paper |
|
|
Chart Drive Speed |
2 hours per revolution |
|
|
Control output |
Accuracy |
±0.5%FS |
|
Output Mode |
Relay output：AC 220V/2A DC24V/3A |
|
|
Silicon controlled rectifier output：zero passage trigger pulse output，bi-dictional silicon controlled rectifier output. |
||
|
24V Power output |
DC24V/0.5A |
|
|
Signal transmitting output |
0-10mA 4-20mA 0-5V 1-5V |
|
|
Power supply |
AC220V±10% 50Hz |
|
|
Consumed Power |
Less than 10W |
|
|
Operating Environment |
Environment Temperature：﹣10~50℃ Relative humidity：10%~90%RH |
|
|
Specifications of the test paper |
0-35MPa |
|
|
Dimension |
Length×width×height 280×280×150mm |
|
7) One (1) relief valve, working pressure is 35MPa.
8) All other necessary, check valves, bleed valves,fittings and connections for the proper operation of the unit.
9) One (1) ø13×15m air source hose.
10) One (1) ø10×15m/ 35MPa high pressure testing pipe.
11) One (1) 1〞×15m water suck-in hose.
12) One (1) 50m power supply cable for chart recorder.
13) One (1) set spare parts.
14) One (1) set sealing.
15) One (1) set tools.
16) Two (2) sets of document in Chinese and English.
17) Chinese and English nameplate.
