Description

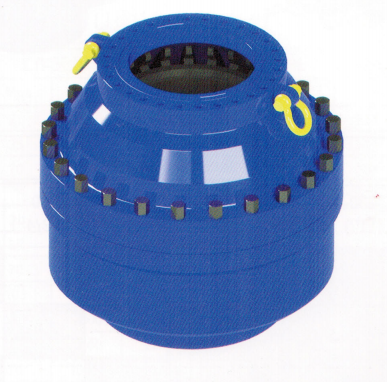

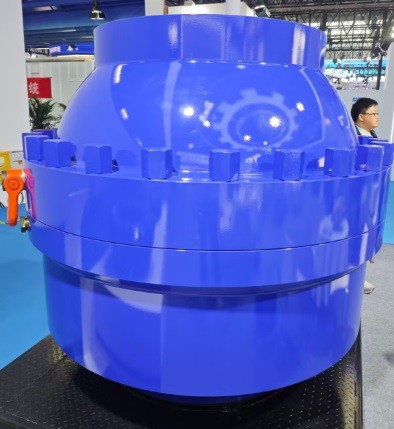

30"-1000PSI diverter
Bore: 30"
Working pressure: 1000psi
Top connection: MSS SP44 30" CLASS 600 R95 SST studed
Bottom connection:MSS SP44 30" CLASS 600 R95 SST Flanged
30"-1000PSI diverter
Bore: 30"
Working pressure: 1000psi
Top connection: MSS SP44 30" CLASS 600 R95 SST studed
Bottom connection:MSS SP44 30" CLASS 600 R95 SST Flanged
Consisting of: |
---|
1 x 30" 1000 psi Annular BOP, 30" 1M R-95 Flange down, 30" 1M R-95 Studded Top |
1 x 30" 1000 psi Diverter Spool, 30" 1M Flanged Top & Bottom, c/w 2 off 13-5/8 3M R-57 Flanged Side Outlets |
1 x 30" 1000 psi R-95 Butt Weld Flange for Conductor top |
2 x 12" CI 900 Diverter ball valves, Hyd Actuated, 13-5/8" 3M Flanged R-57 |
2 x 13-5/8" 3000 psi R-57 Butt Weld Flanges for Diverter Valve to flare lines connection |
Flare Lines, 12" by 15' sections c/w Flange or Hammer Lug connections to customer specifications. |
28 Studs c/w 1 Nut 2" 8UN x 11-1/2" Long, Top of Annular |
56 Studs c/w 2 Nuts 2" 8UN x 14-1/2" Long for the 30" 1000 psi R-95 Flanges & 30" 1M Butt Weld Flange |
80 Studs c/w 2 Nuts 1-3/8" 8UN x 10-3/4" Long for the two 12" Diverter Valves & Butt Weld Flanges |
3 each R-95 Ring Gaskets (for 30" 1M Profile) |
4 each R-57 Ring Gaskets for the two 12" Diverter Valves |
Sales items: Studs/Ring Gaskets provided at Cost + 15% |
