Description

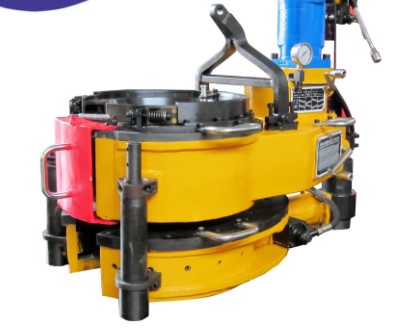

Model XQ140/12A hydraulic power tong is a mouth opening power tong which can quickly make-up or
break-out pipe strings in well service. It is used in making-up or breaking-out tubing, small drilling pipe
and small casing with diameters from 23/8″-51/2″ . Compared with the same type of tongs by other tong
makers, it features simple structure, convenient operation, reliable performance, long life, broad application
range and large torque. It is widely used in onshore or offshore oilfields. It can reduce workload, improve
work efficiency and the well service quality.
Specification：
|
Model |
XQ140/12A |
|
Pipe Size Range of Master Tong |
Φ60-140 23/8’’- 51/2’’ |
|
Pipe Size Range of Backup Tong |
Φ60-156 27/8’’- 61/8’’ |
|
High Gear Rated Torque |
2600N.m 1900ft-lbs |
|
Low Gear Rated Torque |
12000N.m 8850ft-lbs |
|
High Gear Rated Speed |
72r/min |
|
Low Gear Rated Speed |
14r/min |
|
Rated Operation Pressure |
12 MPa 1740 psi |
|
Max. Flow |
120 L/min 32 gpm |
|
Dimension :L x W x H |
1031 x 621 x 841 |
|
Weight(including Backup Tong) |
490 kg 1080 lbs |
Hot Tags: xq140/12a hydraulic tubing tong, China, manufacturers, customized, in stock, quotation, made in China
XQ29/1.8 well repair power line is an open-end power tong, which is used to make and remove the sucker rod joint thread in oilfield well repair operations. It is the lightest tubing tong among the hydraulic Power tongs currently used for well repair.
It Has Following Features:
1
2
The new hydraulic backup tong and the master tong form a combined tong, operate the control valve on the master tong, the backup tong will automatically clip or simultaneously loosen the sucker rod joint.
3
The braking mechanism set above the tong head cover. It's convenient for adjustment and maintenance.
4
The new hydraulic backup tong and the master tong form a combined tong, operate the control valve on the master tong, the backup tong will automatically clip or simultaneously loosen the tube pillar.
5
Adjust the oil supply pressure, users can obtain the best make-up torque of various kinds oil tube.
Change dies of different sizes, it can clip sucker rod's joint or tubing of corrESPonding specification.
