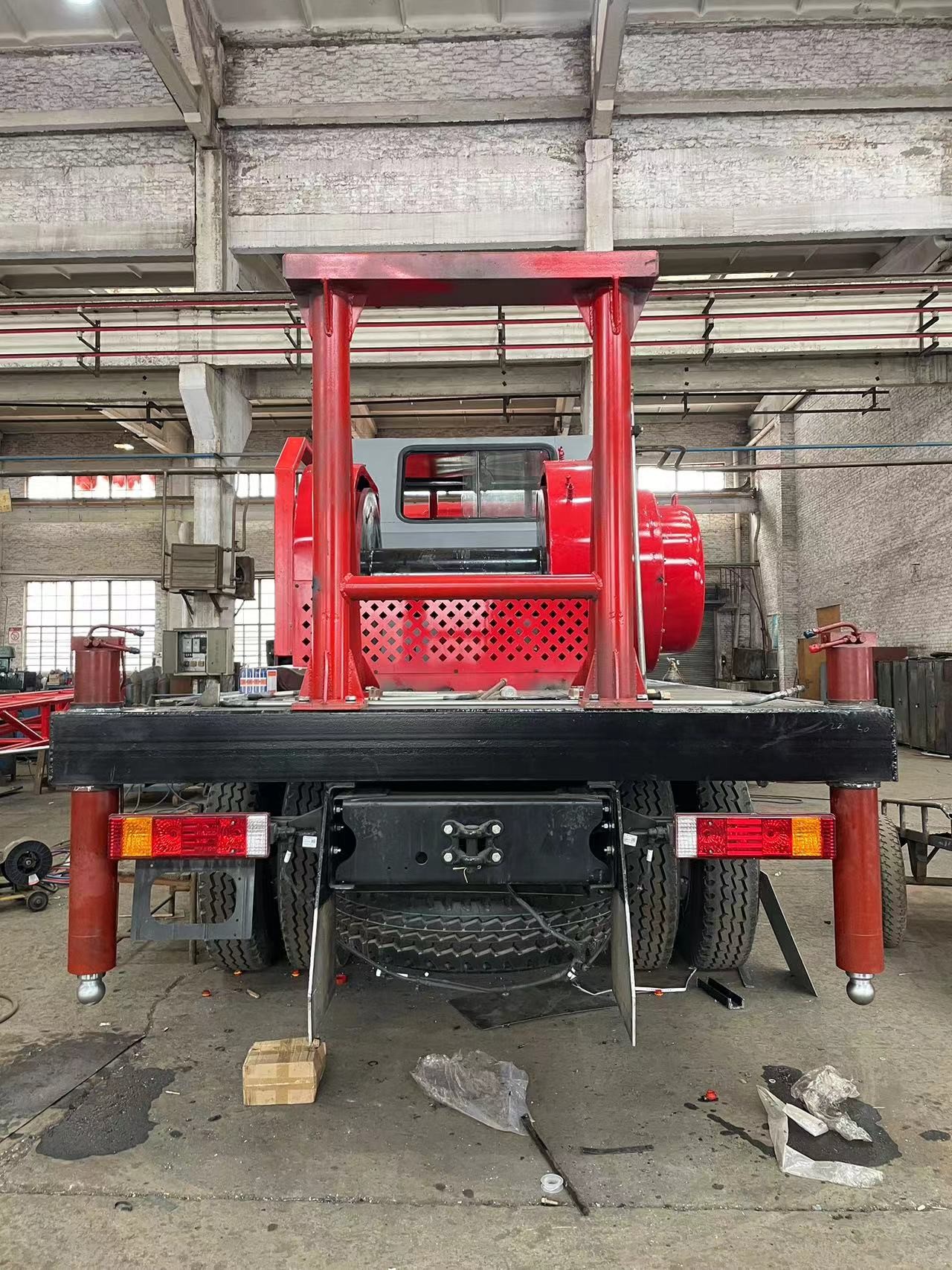

Description
1. Main parameter:
Model:
CS-80
Engine power:
206kw
Max. lifting force of drum:
80 kN
Dia. of wireline
9/16〞
Max. wire line capacity:
2500m
2. Main components specification
1) Diesel Engine
The diesel engine connect with clutch and gear transmission, equipped with blast pump for air
system.
Engine model:
WD615.50
Engine brand:
Weichai
Engine power:
206 kW
Max. speed:
2200r/min
Output torque:
1160Nm

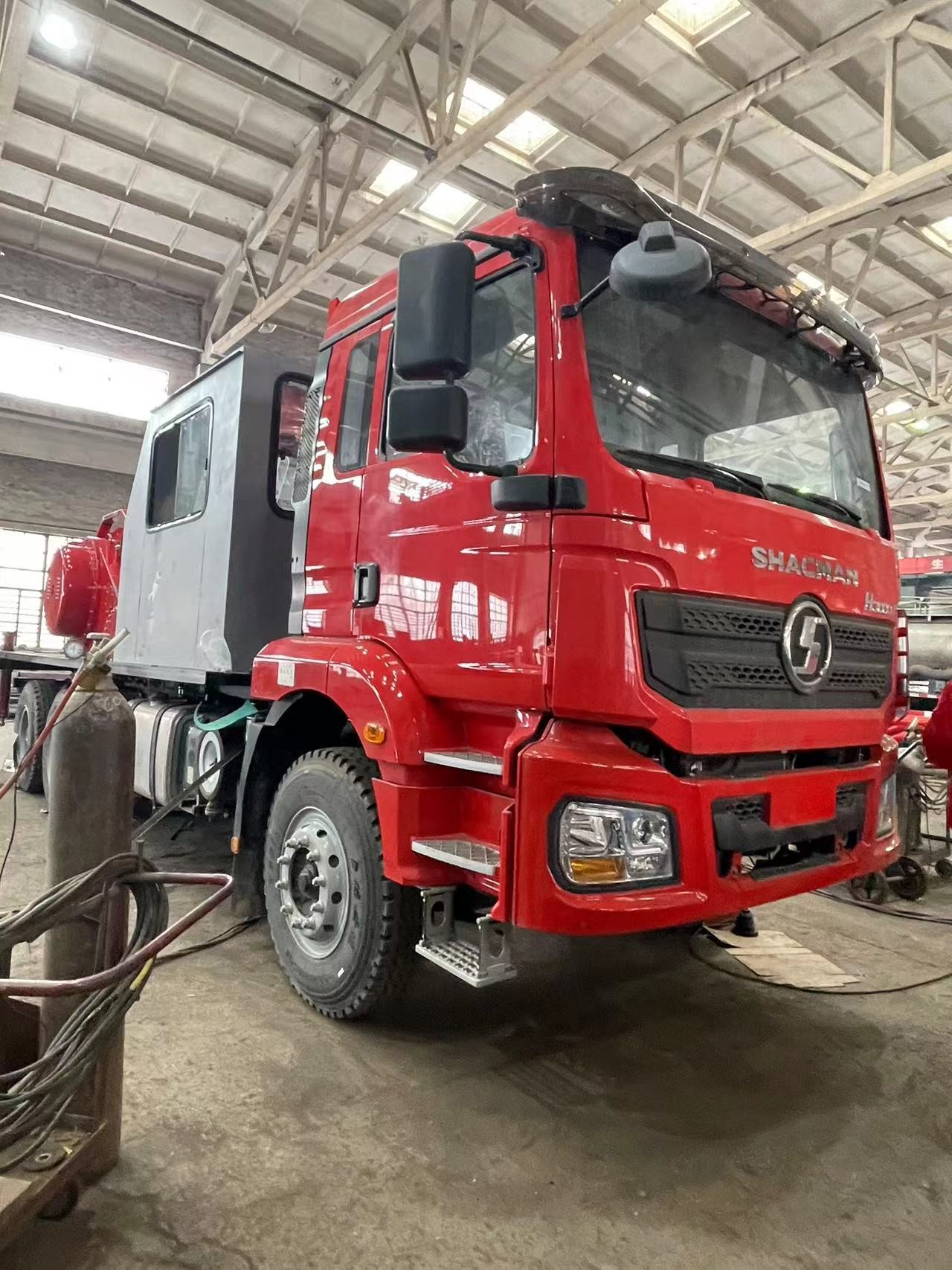

2) Transmission system
Gear transmission use truck transmission which made by Shanqi,through shift gears to change
speed and torque.
Transmission model:
8JS100B
Max. input power:
220kW
Gear ratio:
shift：
Ⅰ
Ⅱ
Ⅲ
Ⅳ
Ⅴ
Ⅵ
Ⅶ
Ⅷ
Ratio：
11.4 7.94
5.63
4.06
2.81
1.96
1.39
1.00

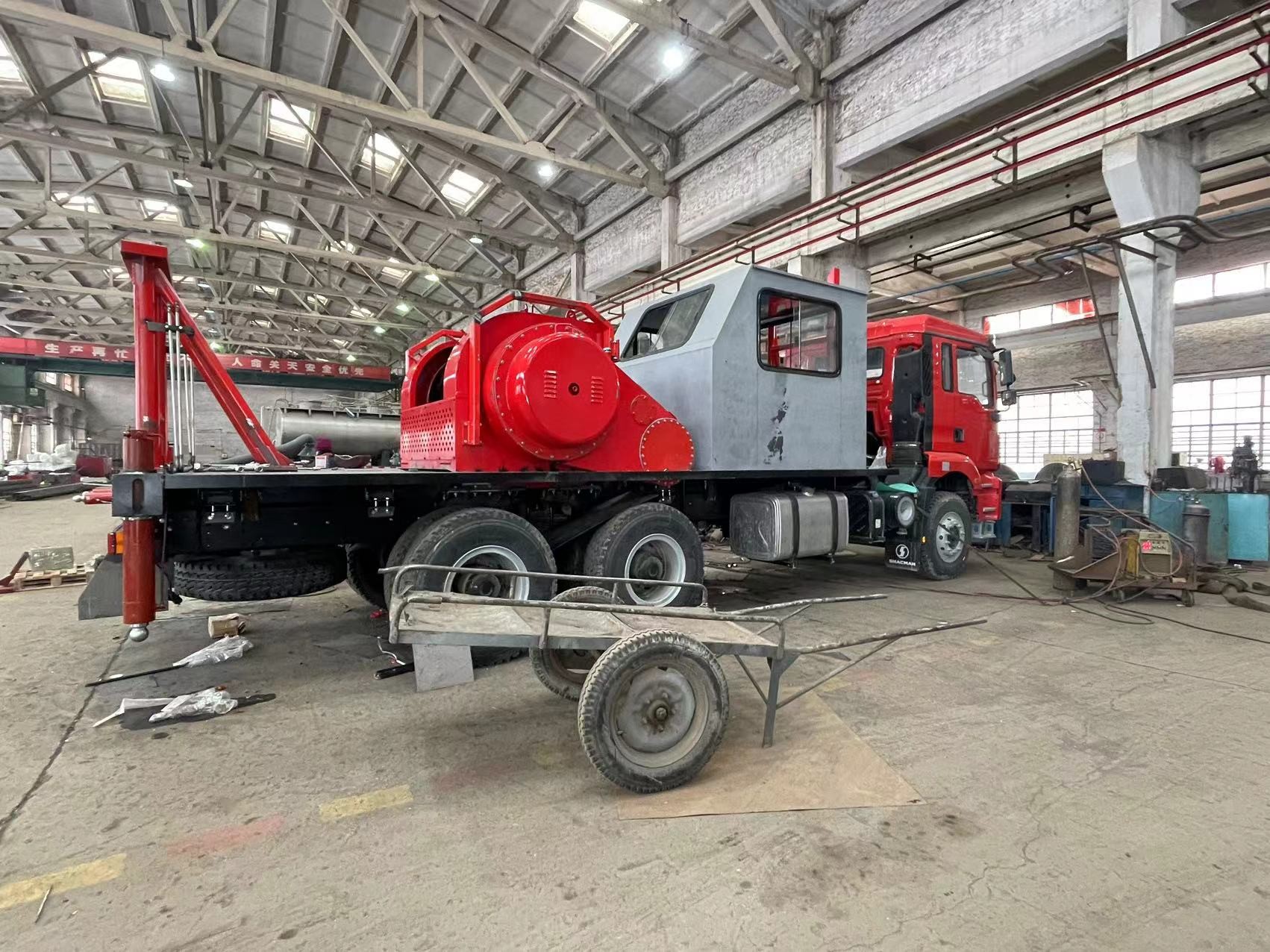

3) Drum assembly
C/w: chain wheels,drum,cltuch
Drum Model
CSJC12
Wireline capacity:
2500m
Dia. of wireline:
9/16〞
Max. lifting load capacity of drum:
80kN
4) Operating cab
Operating cab made by steel plate, main frame, Insulation material & aluminum plat. Nice
working environment.
5) Air system
Air system c/w: blast pump, air cylinder, air control valve, in order to change shift gears, braking &
air clutch.
6) rope arrange device
This device is mechanical rope arrange device, Manual intervention. The wire ropes can be
neatly arranged on the roller to prevent the wire ropes being staggered and damaged
7) Brake system
Drum brake device c/w: Manual mechanical double-sided brake, & one set of additional
